The Brute Force CS20-24 circle saw firewood processor is a high production machine

Brute Force Commercial Series CS 20-24 Diesel Firewood Processors

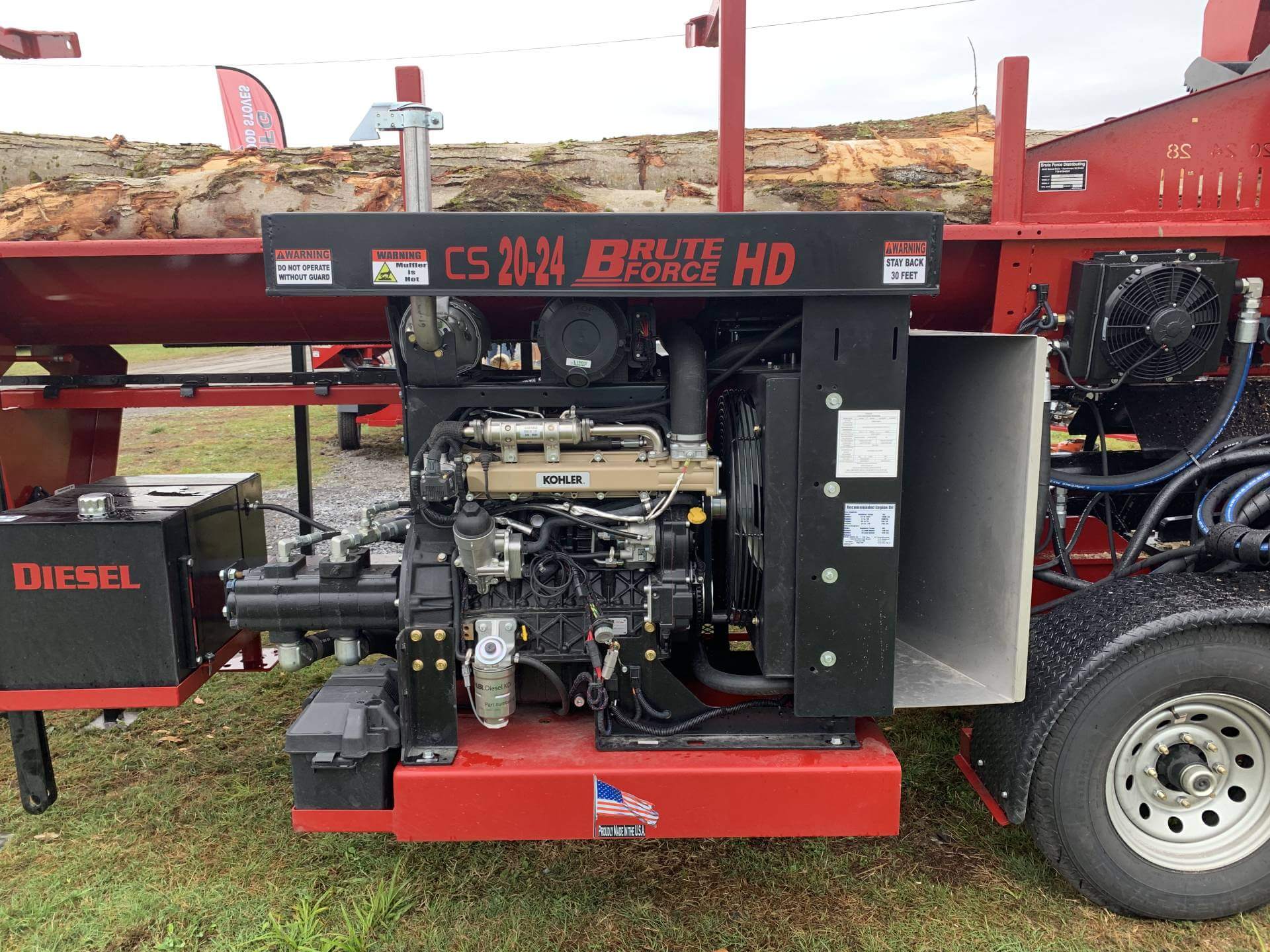

The Brute Force CS20-24 circle saw firewood processor is a high production machine, built to handle logs up to 20″ diameter. The CS 20-24 has a standard 48″ circle saw, 74 HP Kohler Tier 4 turbo diesel engine and 82 gpm triple hydraulic pump. The CS 20-24 is a great value for a heavy built circle saw processor. Splitting from 1.5 to 5 cords per hour. The CS 20-24 machine is designed for the commercial firewood producer. The CS 20-24 comes standard with a 2-stage splitter, 4 strand hydraulic live deck that is easily raised and lowered hydraulically with a lever on the operator control panel. The integrated 18′, hydraulic operated chain conveyor, swings 3′ left and right and allows you to easily load firewood into a trailer or truck box, even with high sides. The saw, clamp, live deck, and log in feed conveyor are all joystick controlled for easy use. All CS 20-24 come with the following equipment standard: a 4 way, hydraulically adjustable wedge which can be raised and lowered at the push of a lever; a tandem 7,000 lb. torsion suspension with electric brakes; last log support and measuring grid; integrated tail lights; and round log trough for better handling of crooked logs.

Request A Quote

SPECIFICATIONS

  • Hydraulic Pump: 82 GAL/MIN Double Pump
  • Prince Hydraulic Relief Valve
  • Splitting Cylinder Length: 30″
  • Splitting Cylinder Diameter: 5″
  • 32 Ton Splitting Force
  • Hydraulic Reservoir Cap: 75 Gal
  • Fuel cap: 46 Gal. UISD Sulfur diesel

DIMENSIONS

Length:  28’
Width:  7’ 6”
Height:  12’ 6”
Weight:  11,800 LBS
Log Deck Height:  48”

STANDARD FEATURES

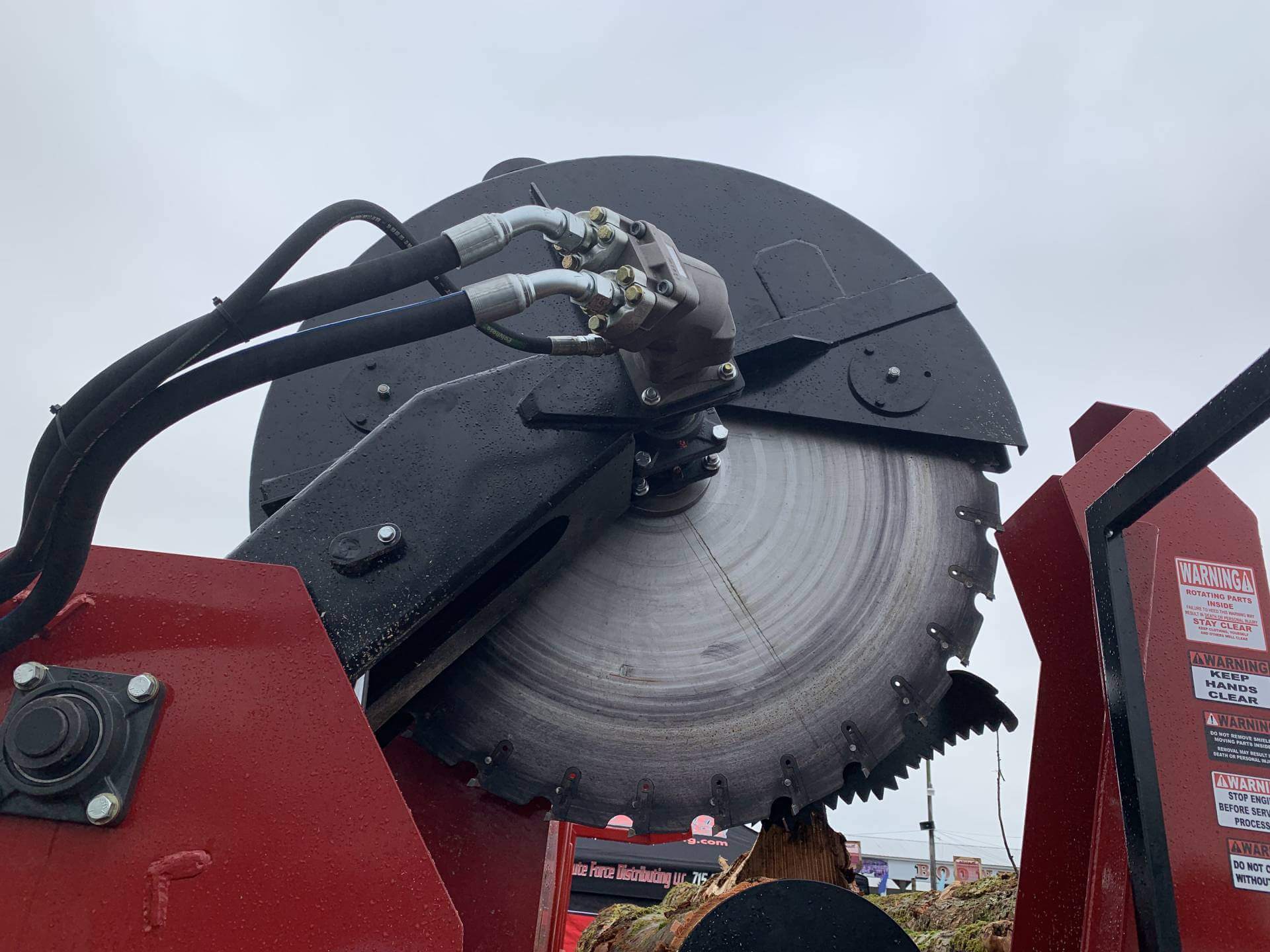

  • 20” Diameter Cut 48″ Saw Blade

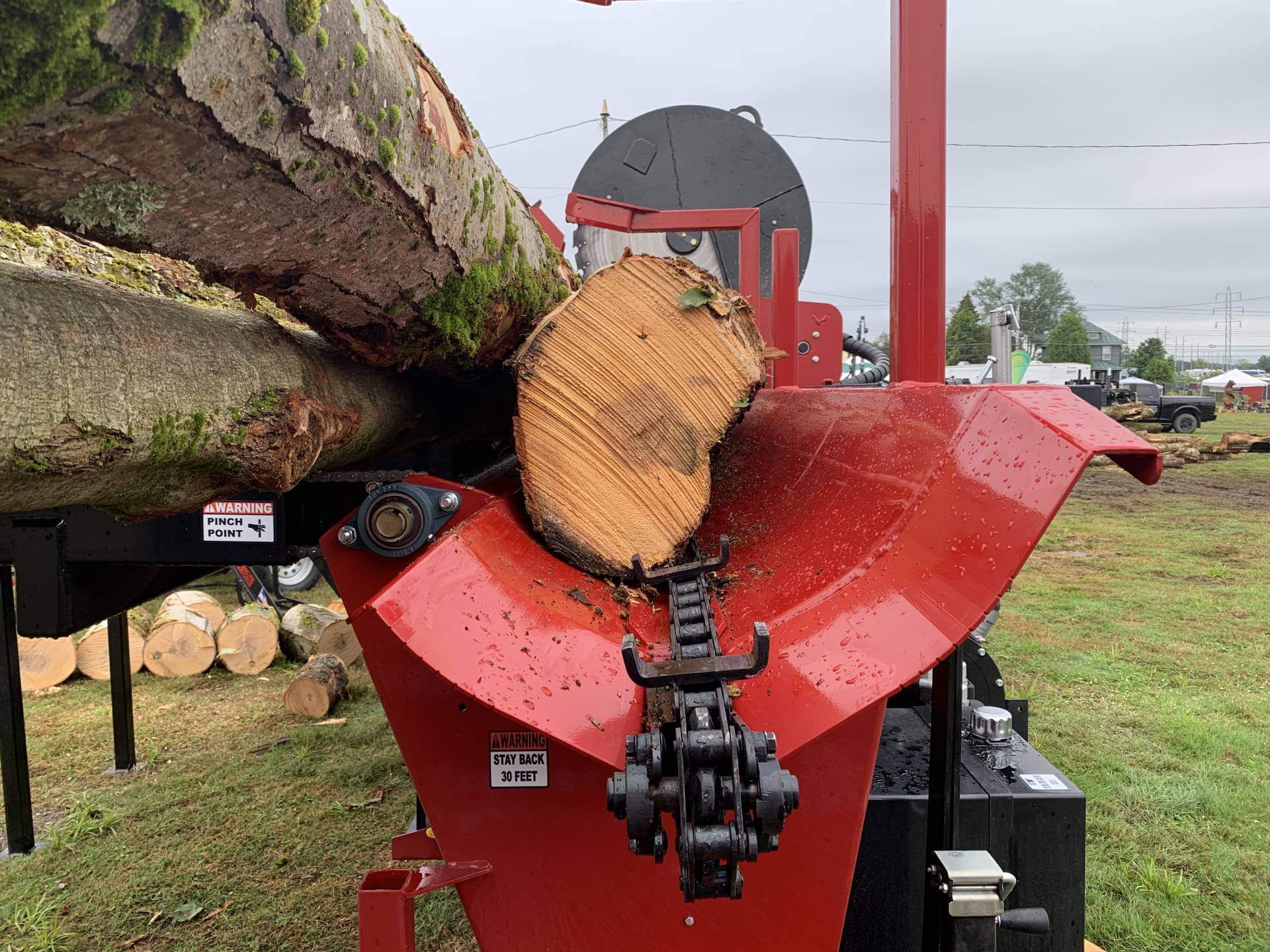

  • Round Log Trough
  • 4- Strand deck

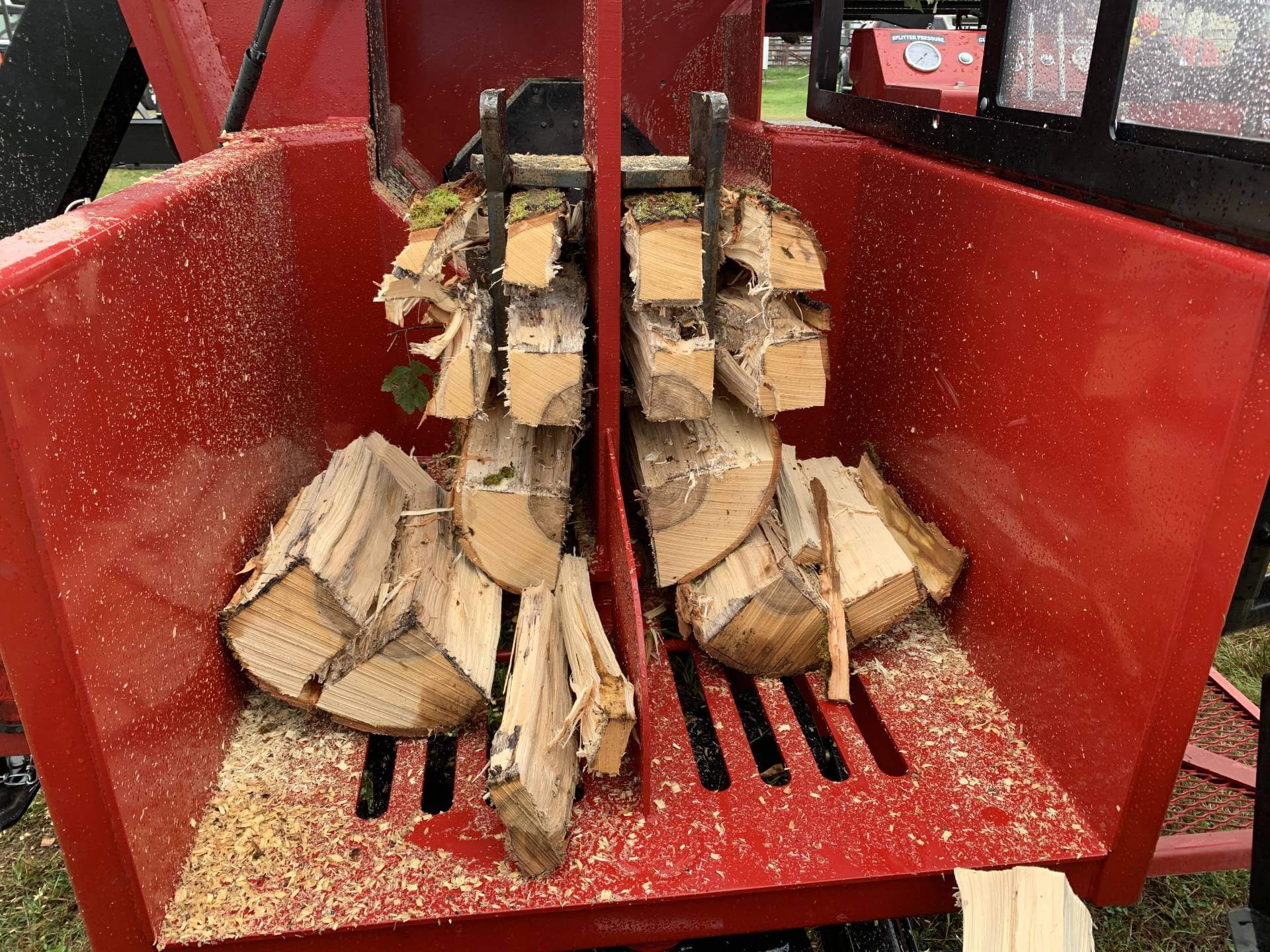

  • 4-Way Hydraulically Adjustable Splitting Head

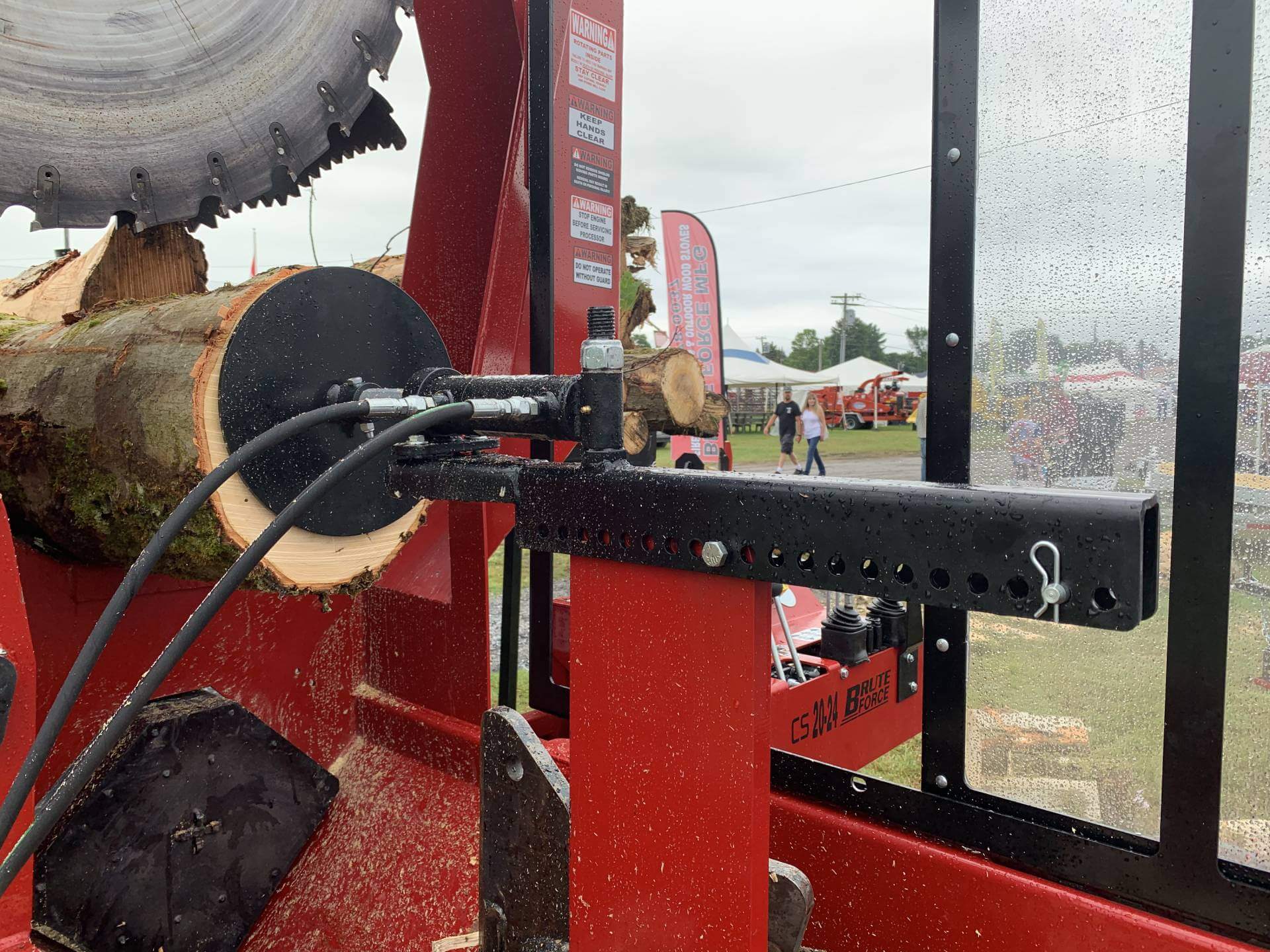

  • Hydraulic Log Clamp and Saw
  • Positive Stop
  • Fast Split
  • Fenders and Taillights

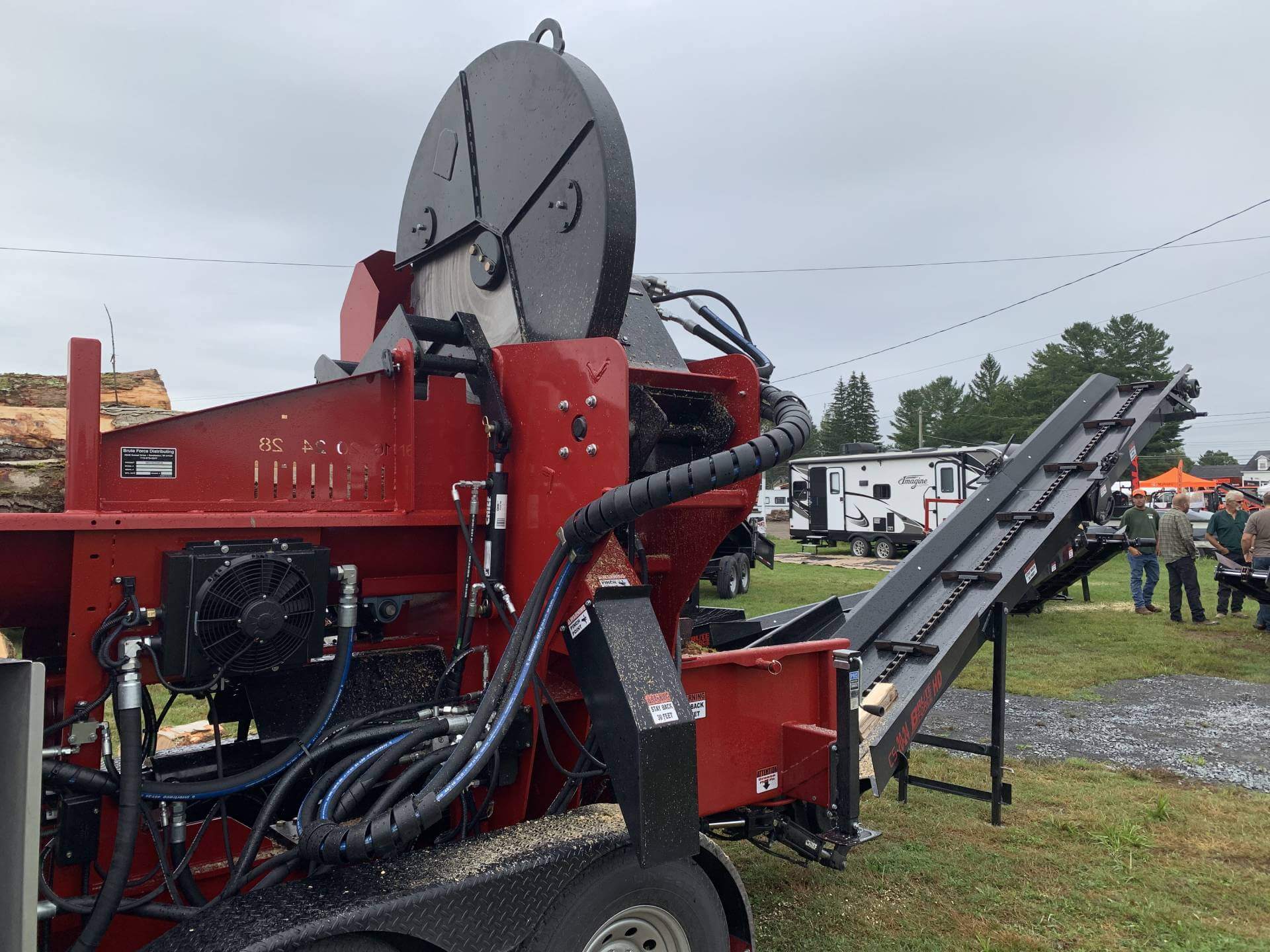

  • 18’ Swiveling Hydraulic Conveyor
  • 2-Stage Splitter
  • 2 5/16″ Receiver Hitch
  • Tandem Axles with Brakes
  • Durable Phenolic wear slides
  • Oil Cooler
  • Operator Seat
  • 3 Year Warranty

OPTIONAL FEATURES

  • 6-Way Wedge
  • 8-Way Wedge
  • 12/14- Way Wedge
  • 16 ft Conveyor
  • Enclosed Cab
  • 10 Ft Extended Frame
  • Large Grizzly Wood Cleaner
  • Custom Colors
  • Umbrella
  • Work Lights
  • Pintle Hitch
  • Auto Cycle
