Brute force commercial series 18-24 diesel firewood processors

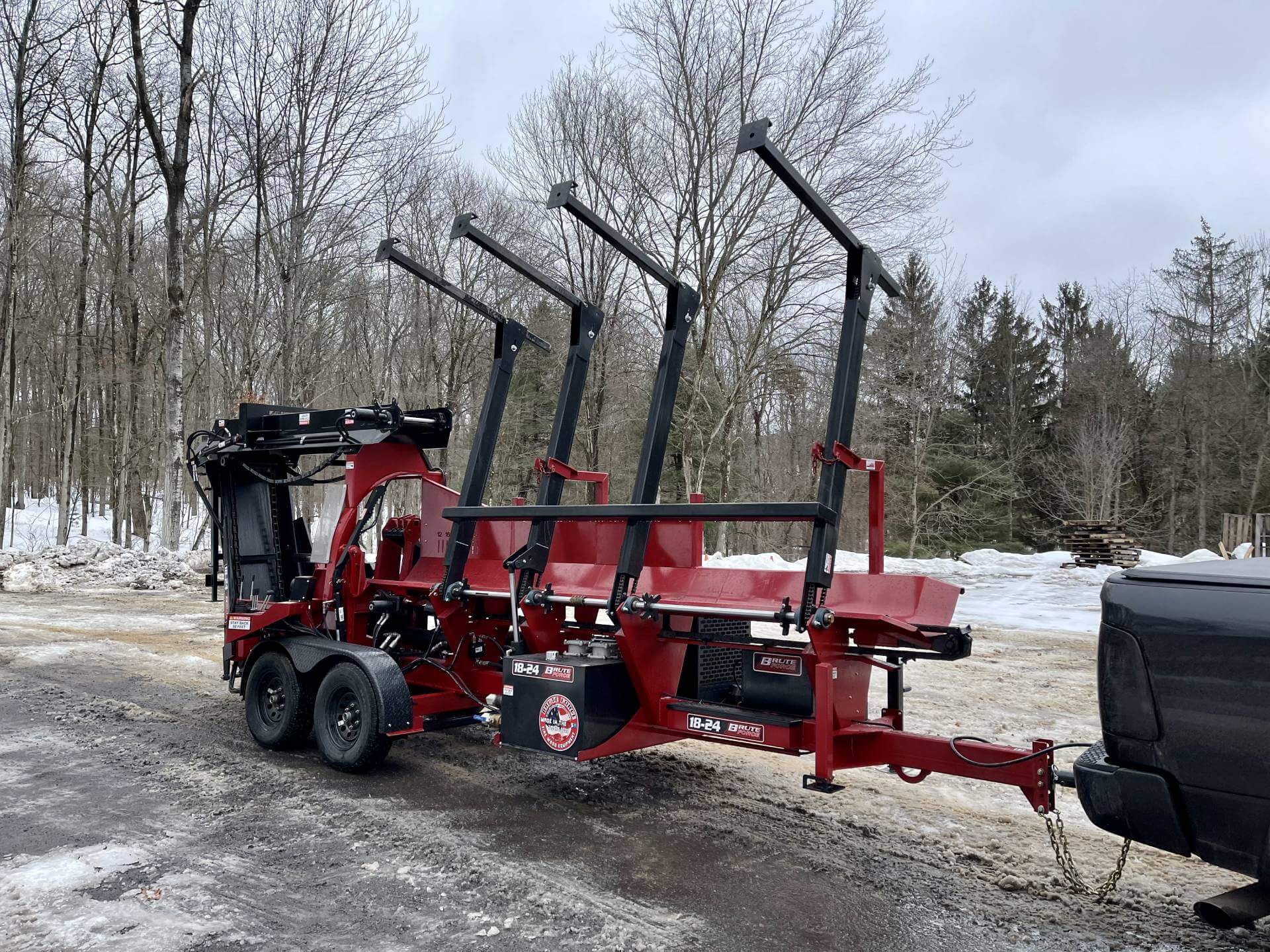

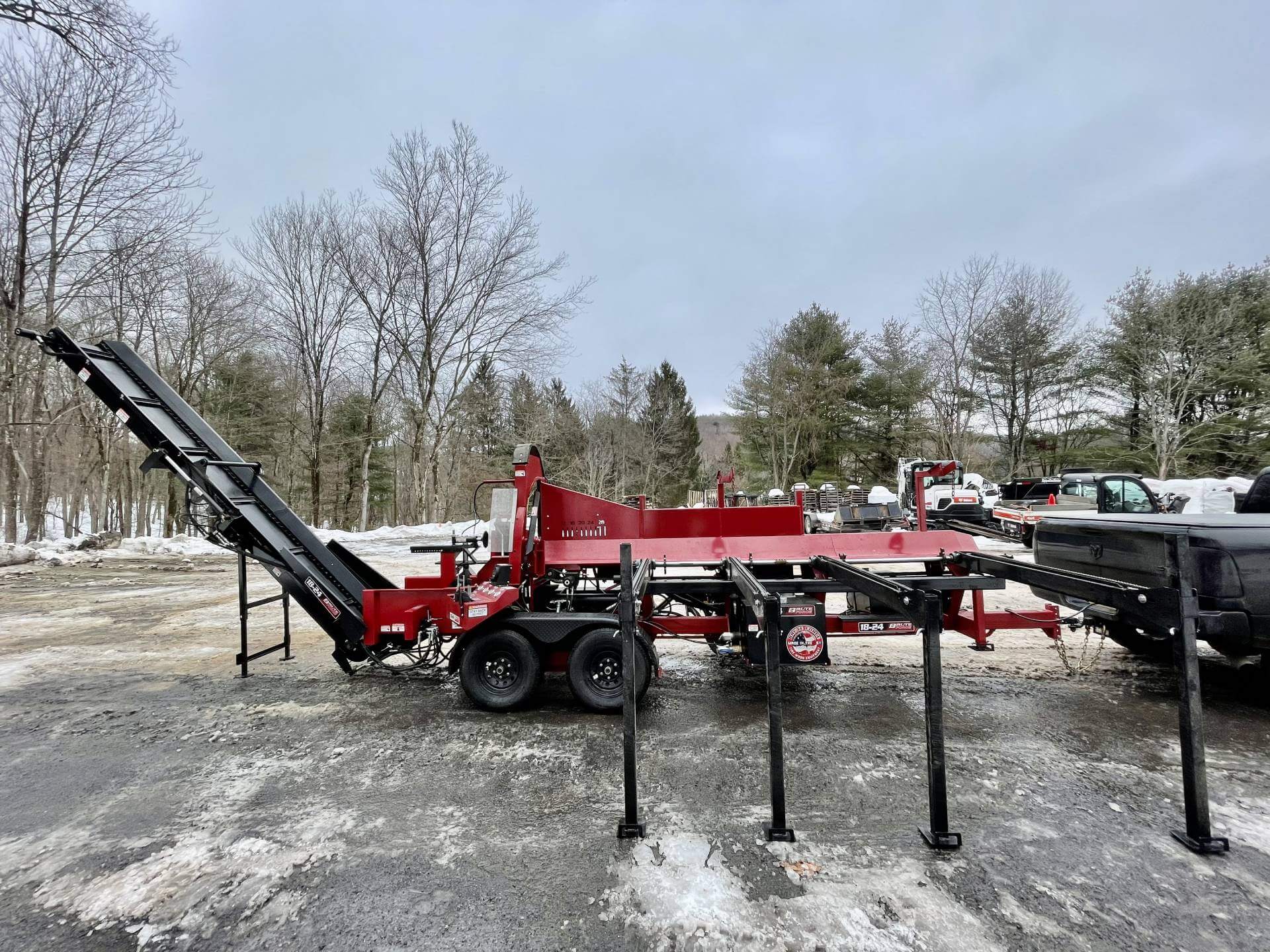

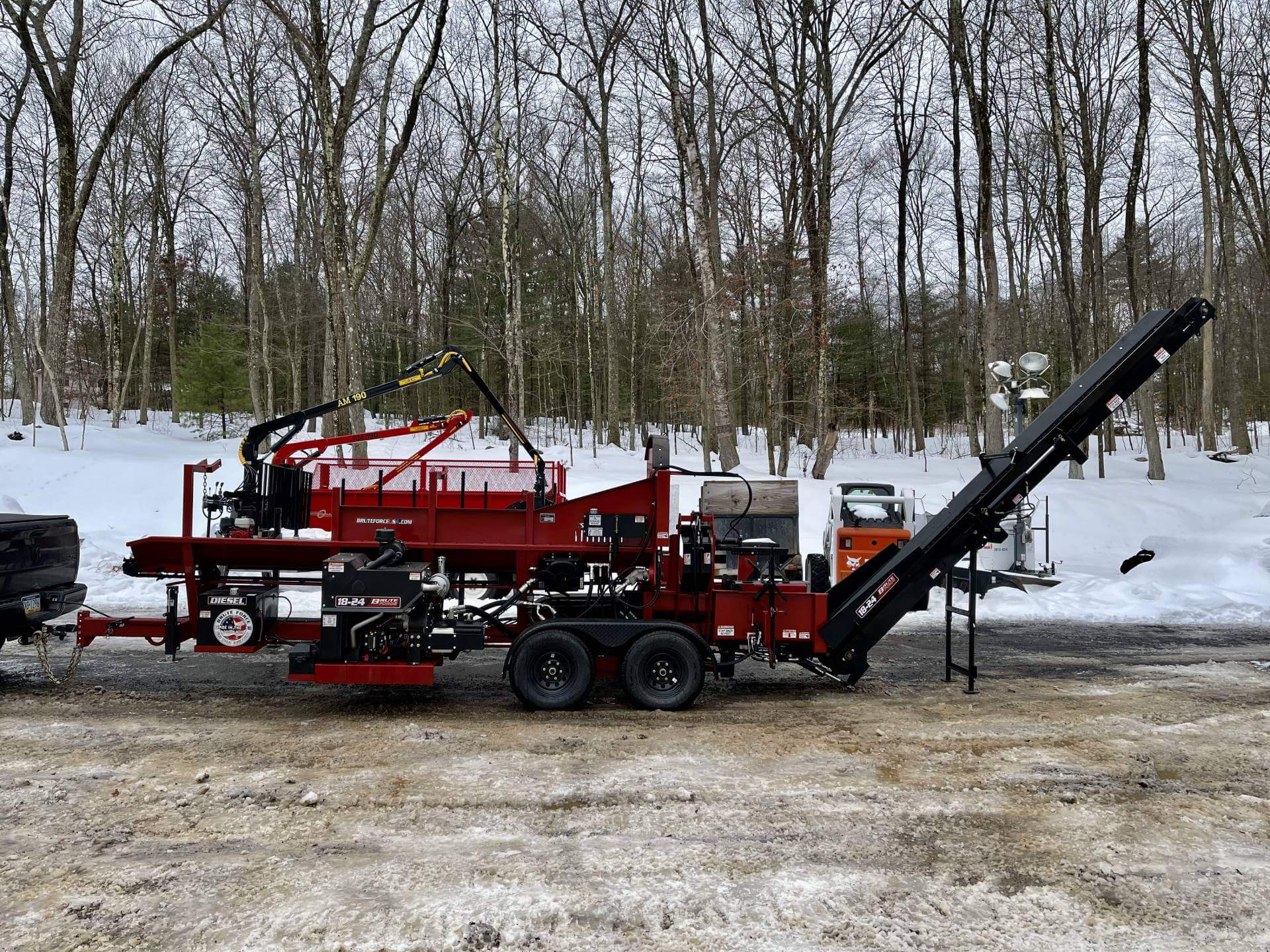

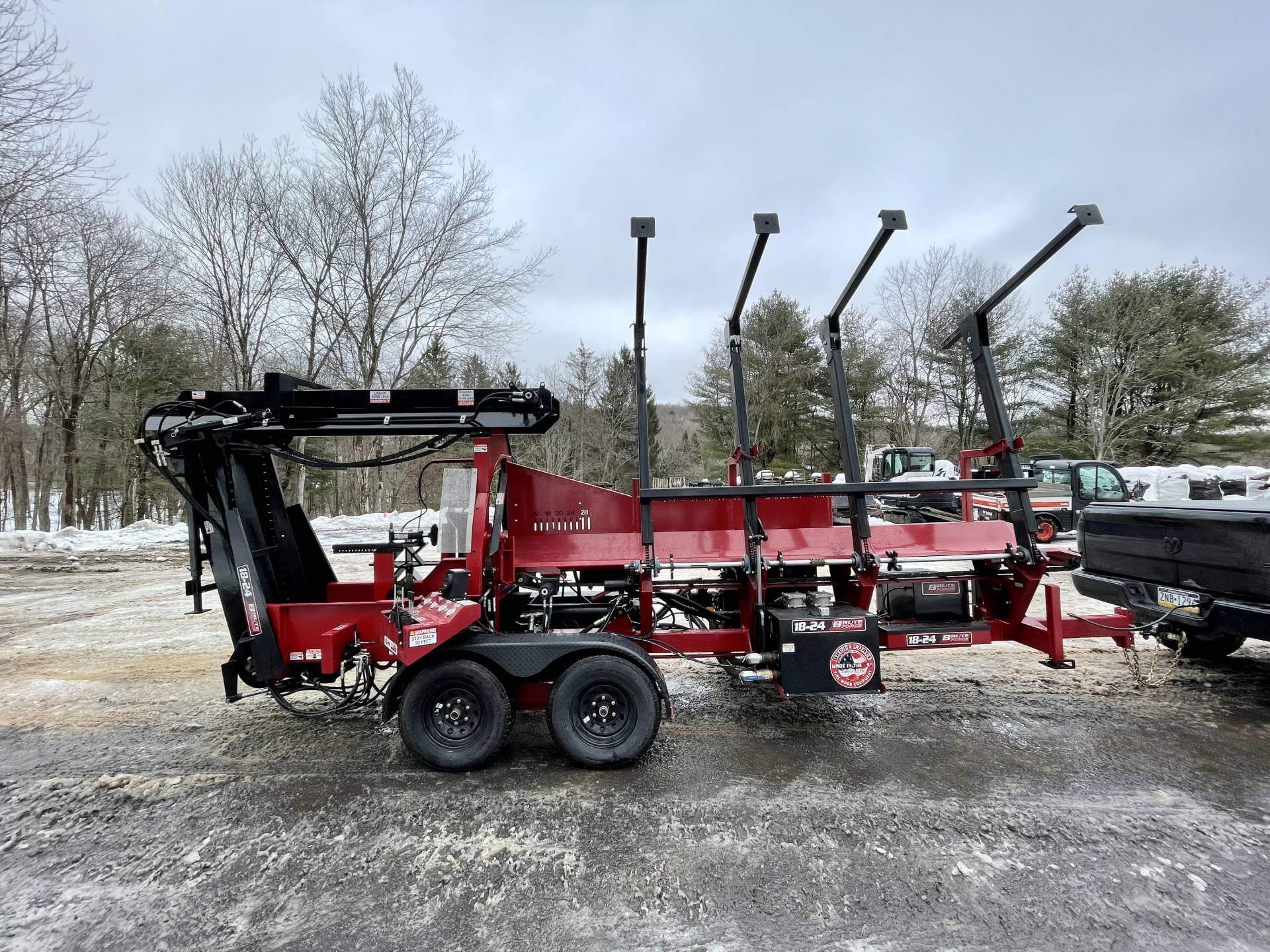

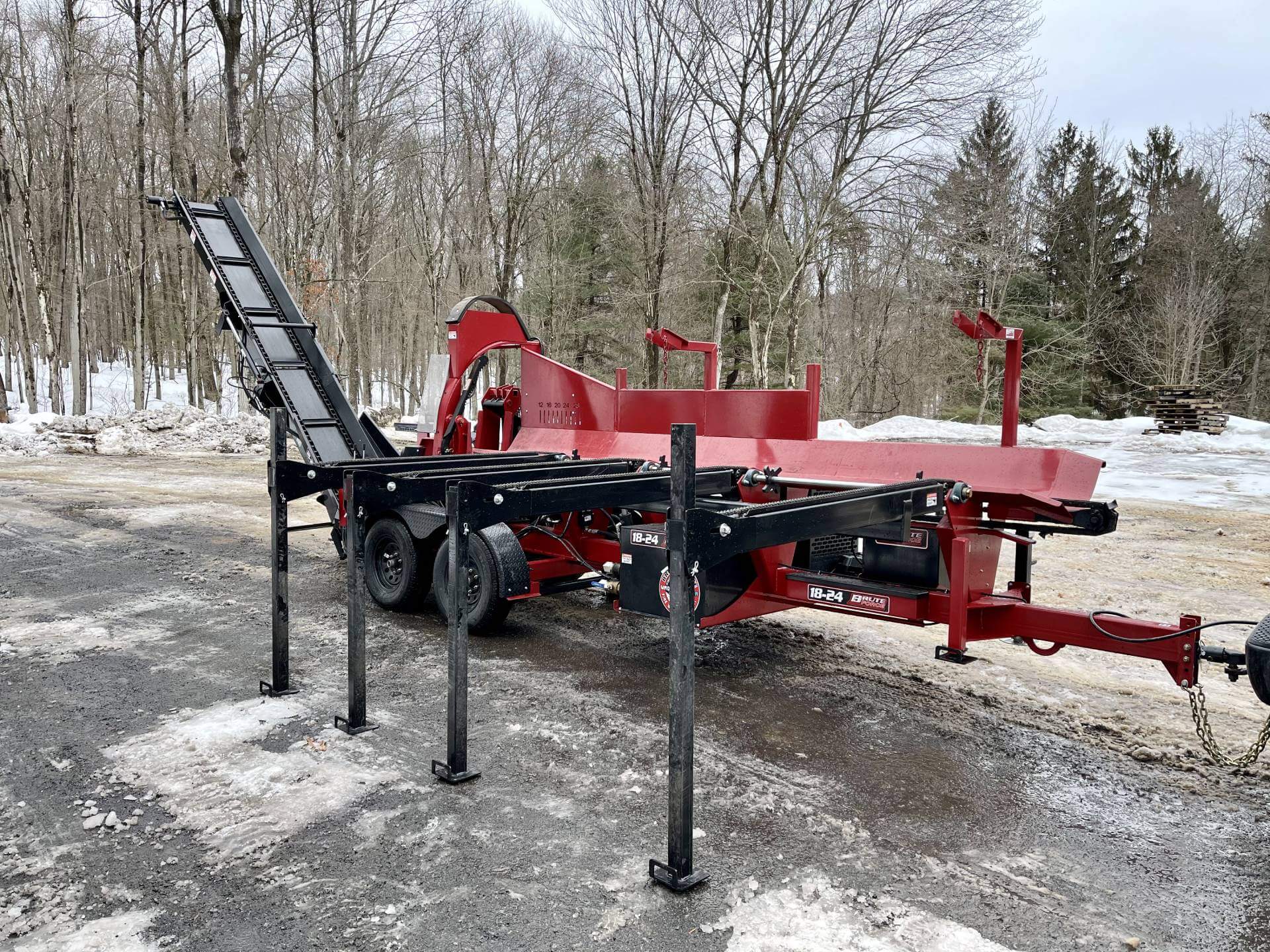

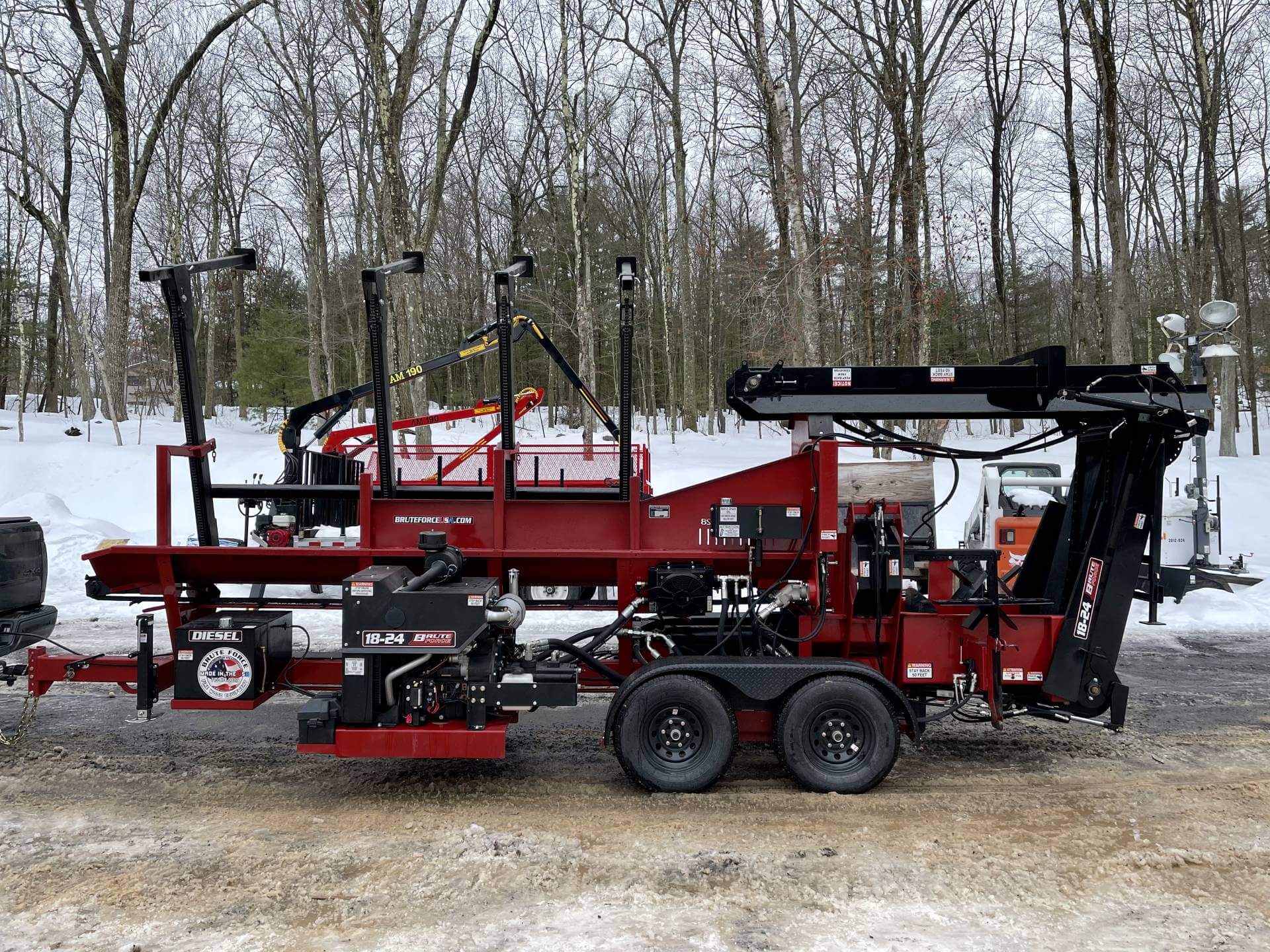

The Brute Force 18-24 HD Diesel is a big production firewood processor in a medium package. The 18-24 Diesel comes standard with a 49 HP Kohler Tier 4 turbo diesel engine and a 70 GPM hydraulic pump. This makes it a great choice for the firewood producer who needs production day in and day out. The 18-24 Diesel is one of the fastest processors in its class, with a cutting diameter of up to 24′′ and a production rate of 2.5 to 5 cords per hour. The 18-24 Diesel comes standard with a 3-strand hydraulic live deck that is easily raised and lowered hydraulically with a lever on the operator control panel.

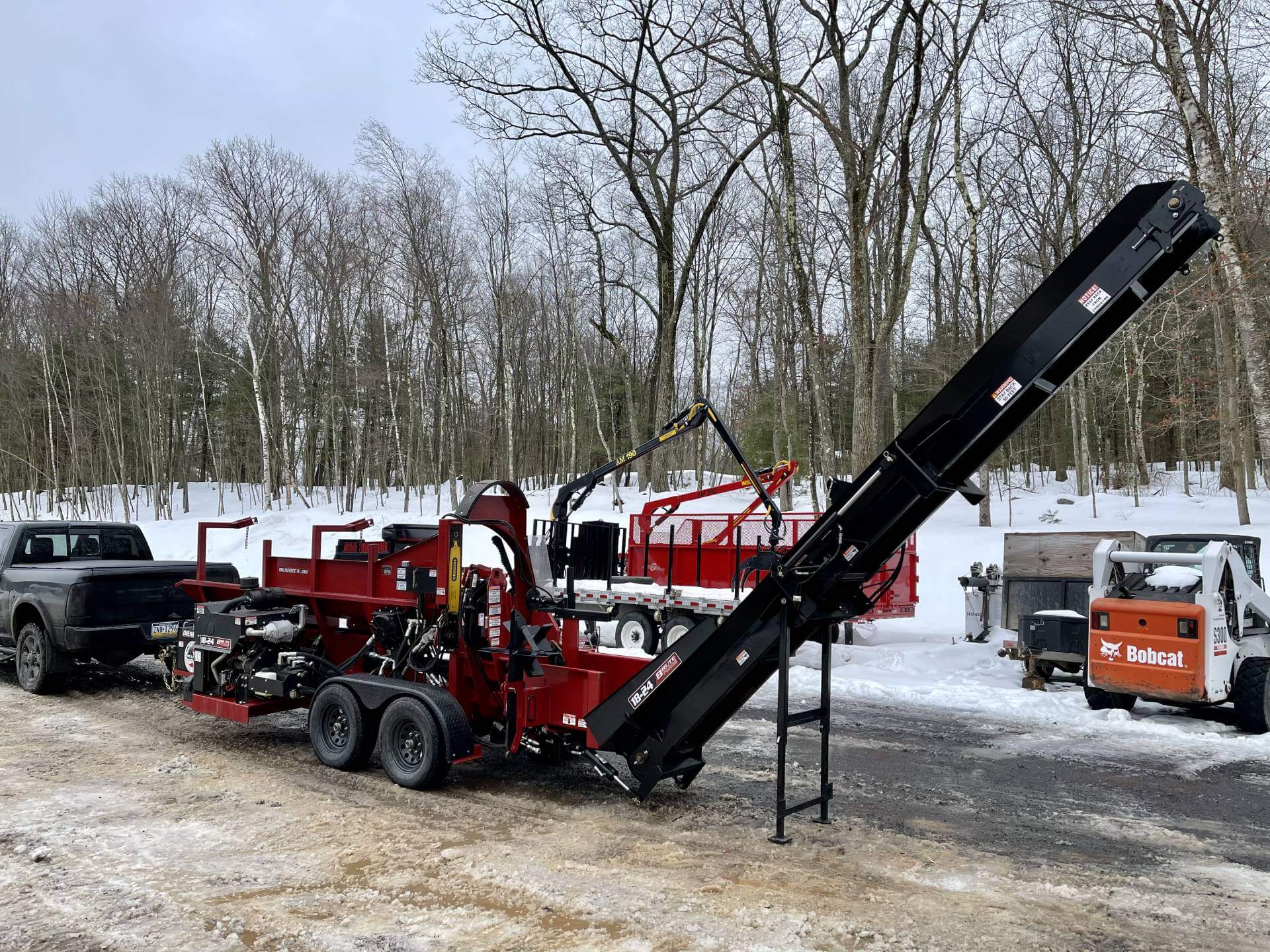

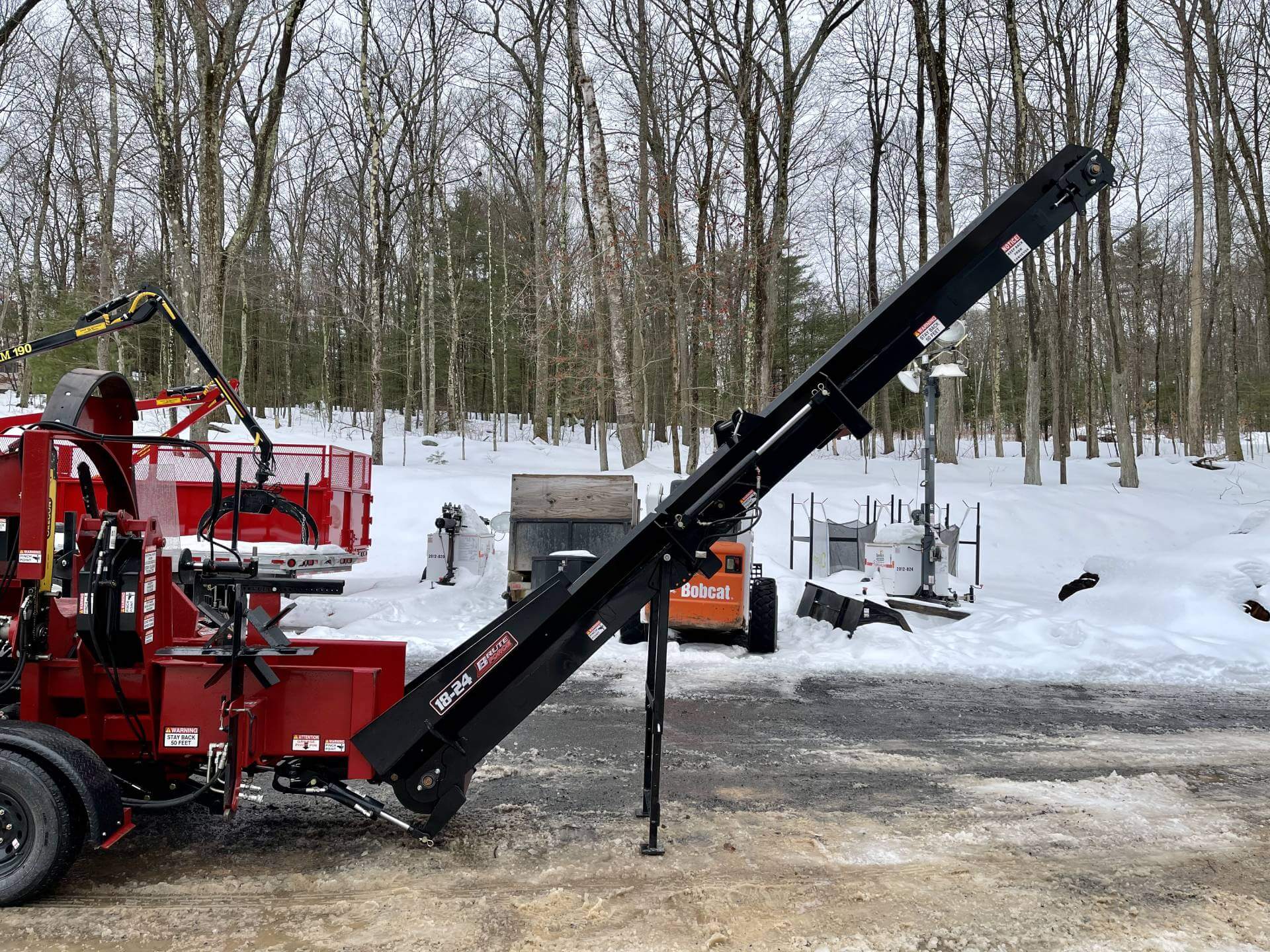

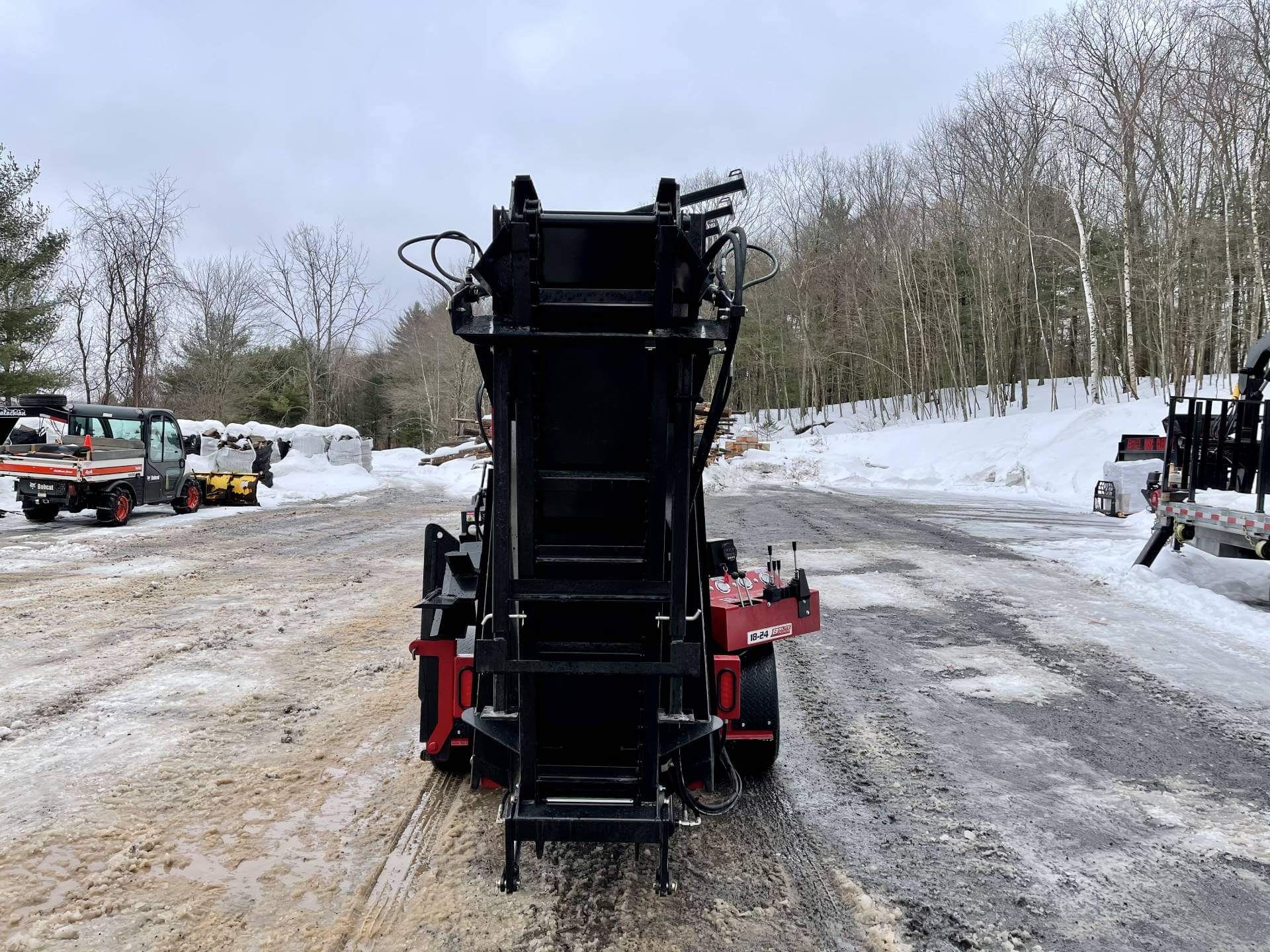

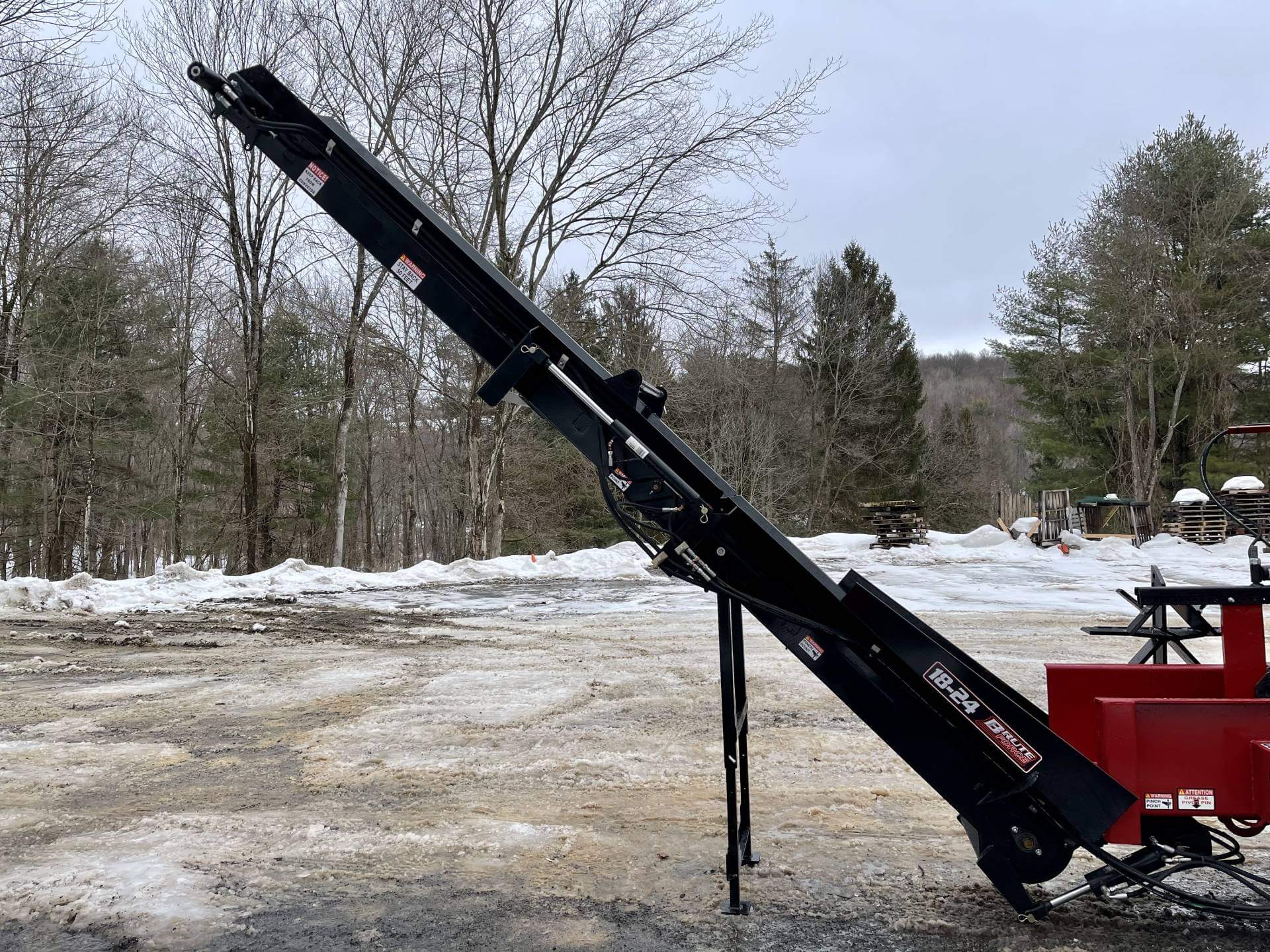

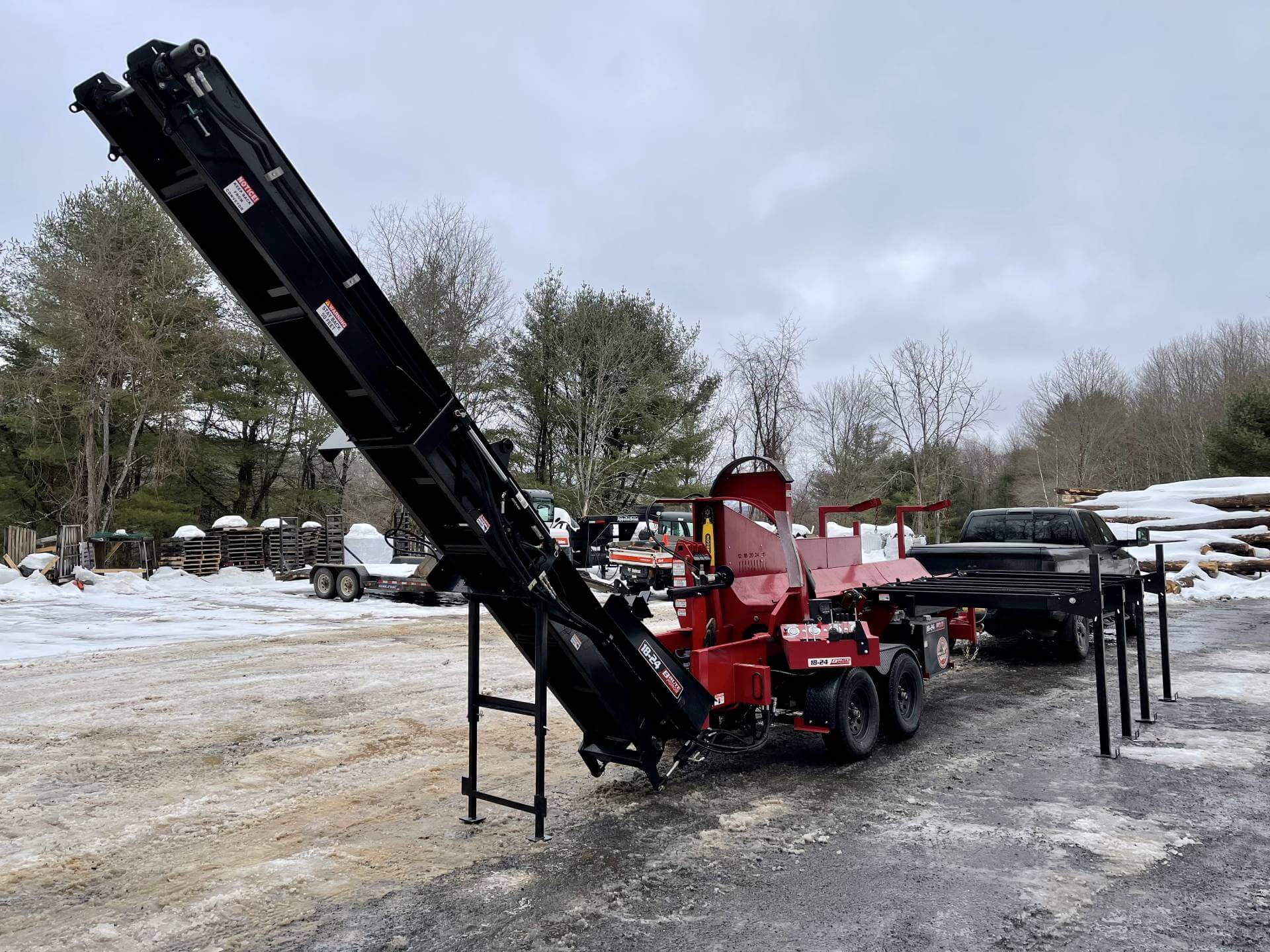

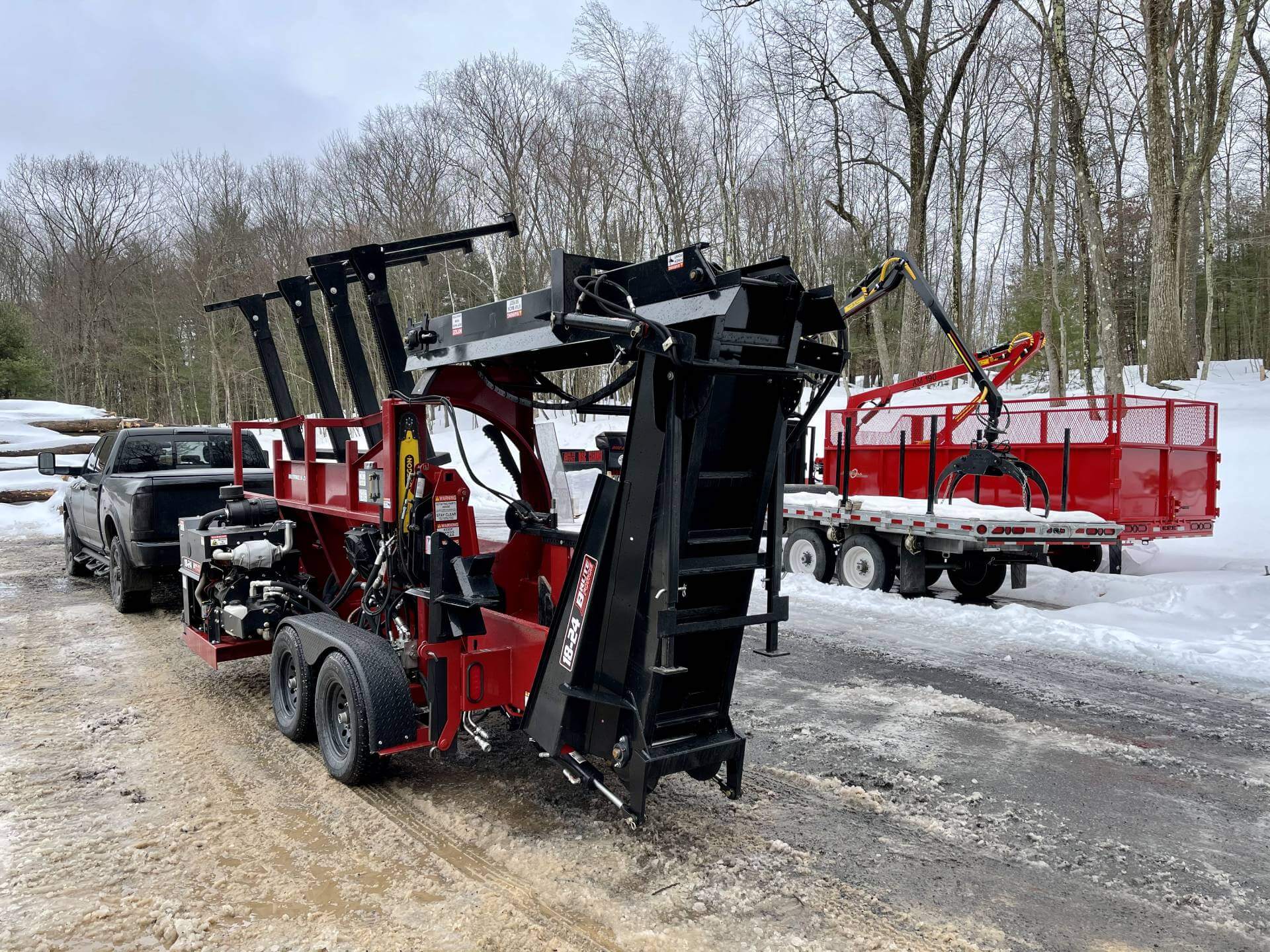

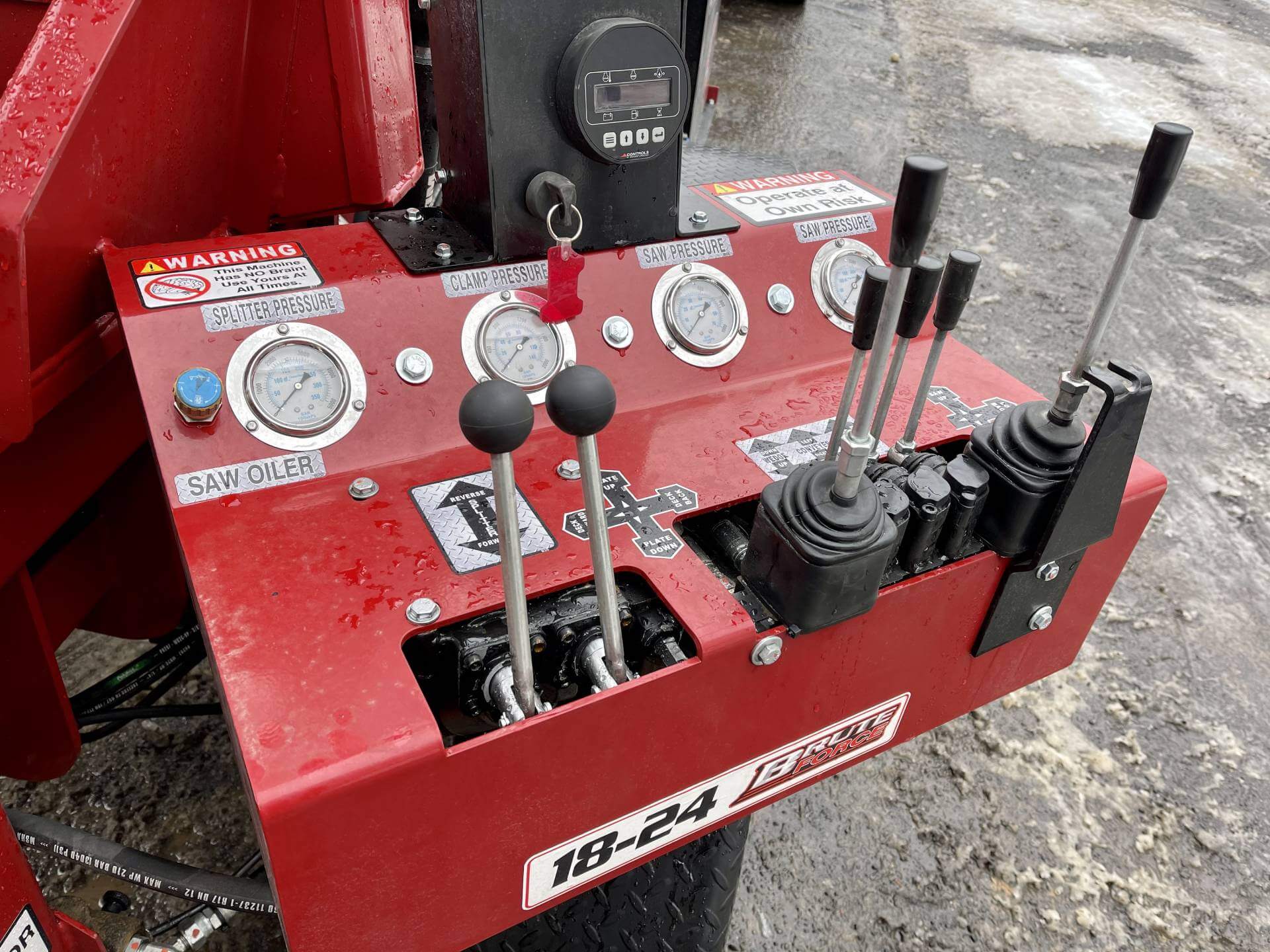

The integrated 14-foot hydraulically operated chain stacking conveyor swings 3 feet left and right, making it easy to load firewood into a trailer or truck box with high sides. The hydraulic saw, clamp, live deck, and log in feed conveyor are all joystick controlled for easy use. All 18-24 Diesels come with the following standard equipment: a 4-way hydraulically adjustable wedge which can be raised and lowered at the push of a lever; torsion suspension with electric brakes; last log support & measuring grid; integrated taillights; and a round log trough for better handling of crooked logs.

Request A Quote

SPECIFICATIONS

  • Hydraulic Pump: 70 GAL/MIN Double Pump
  • Prince Hydraulic Relief Valve
  • Splitting Cylinder Length: 24″
  • Splitting Cylinder Diameter: 4.5″
  • 28 Ton Splitting Force

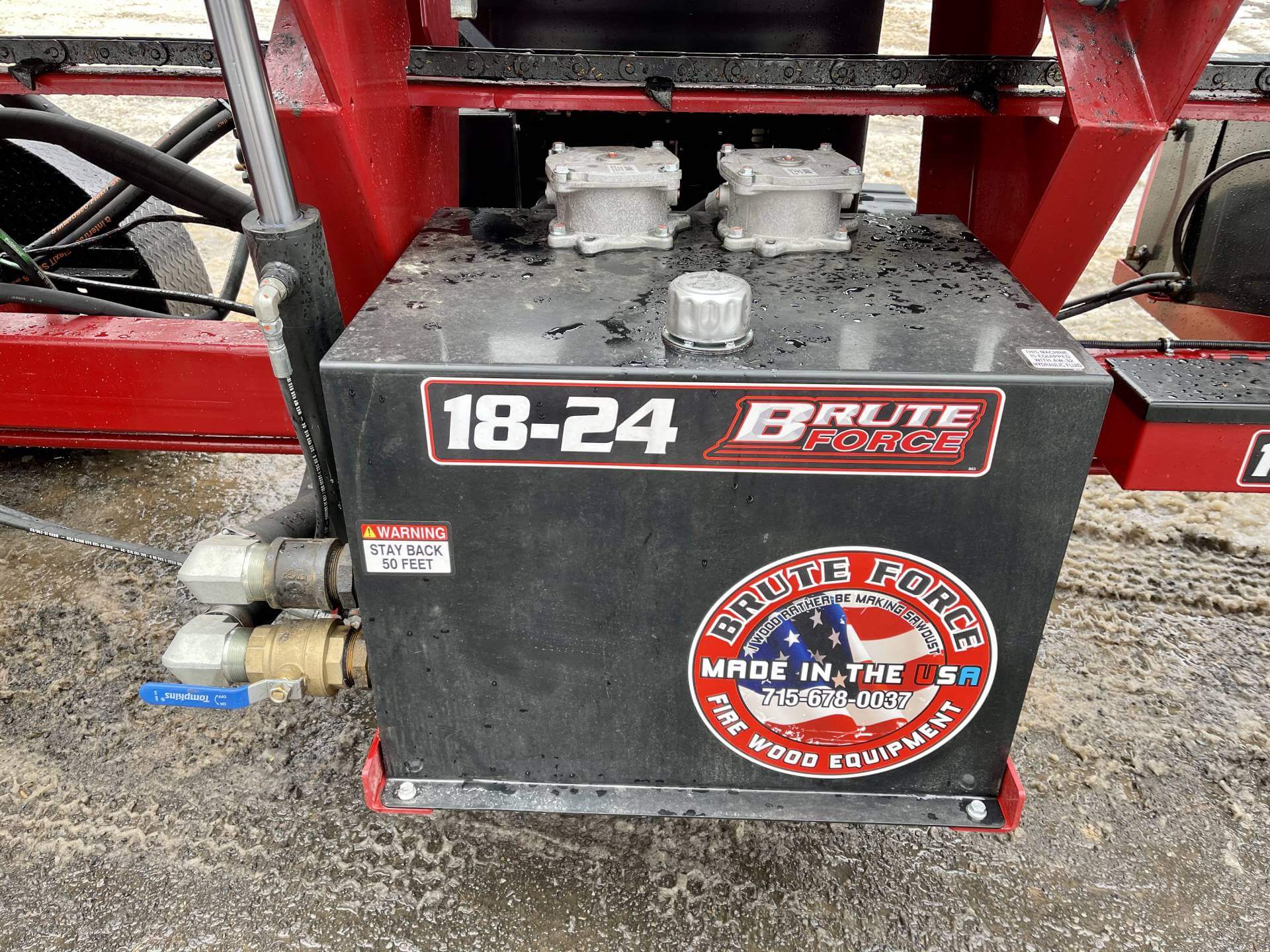

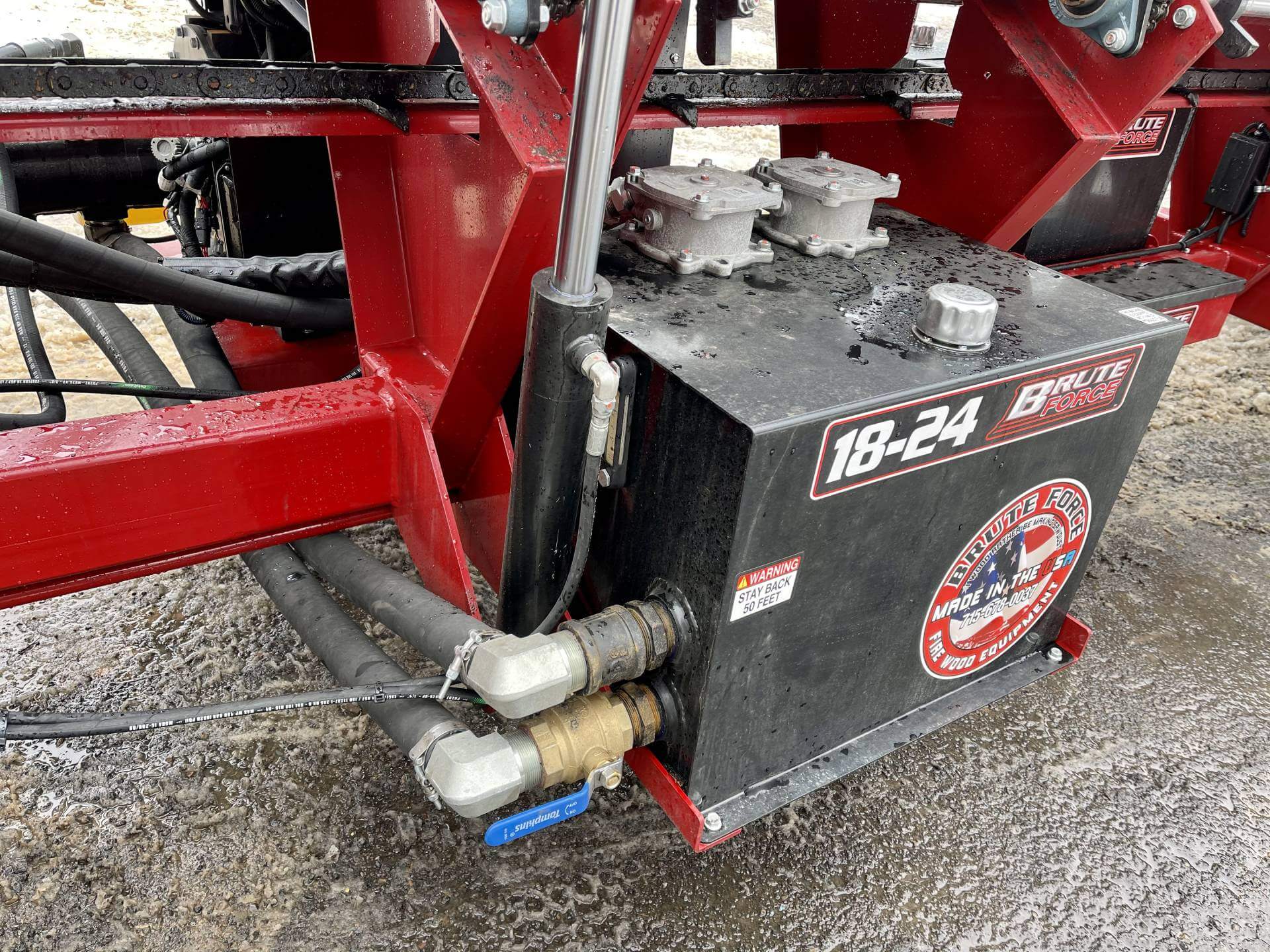

  • Hydraulic Reservoir Cap: 40 Gal
  • Bar oil cap: 2+ gal.

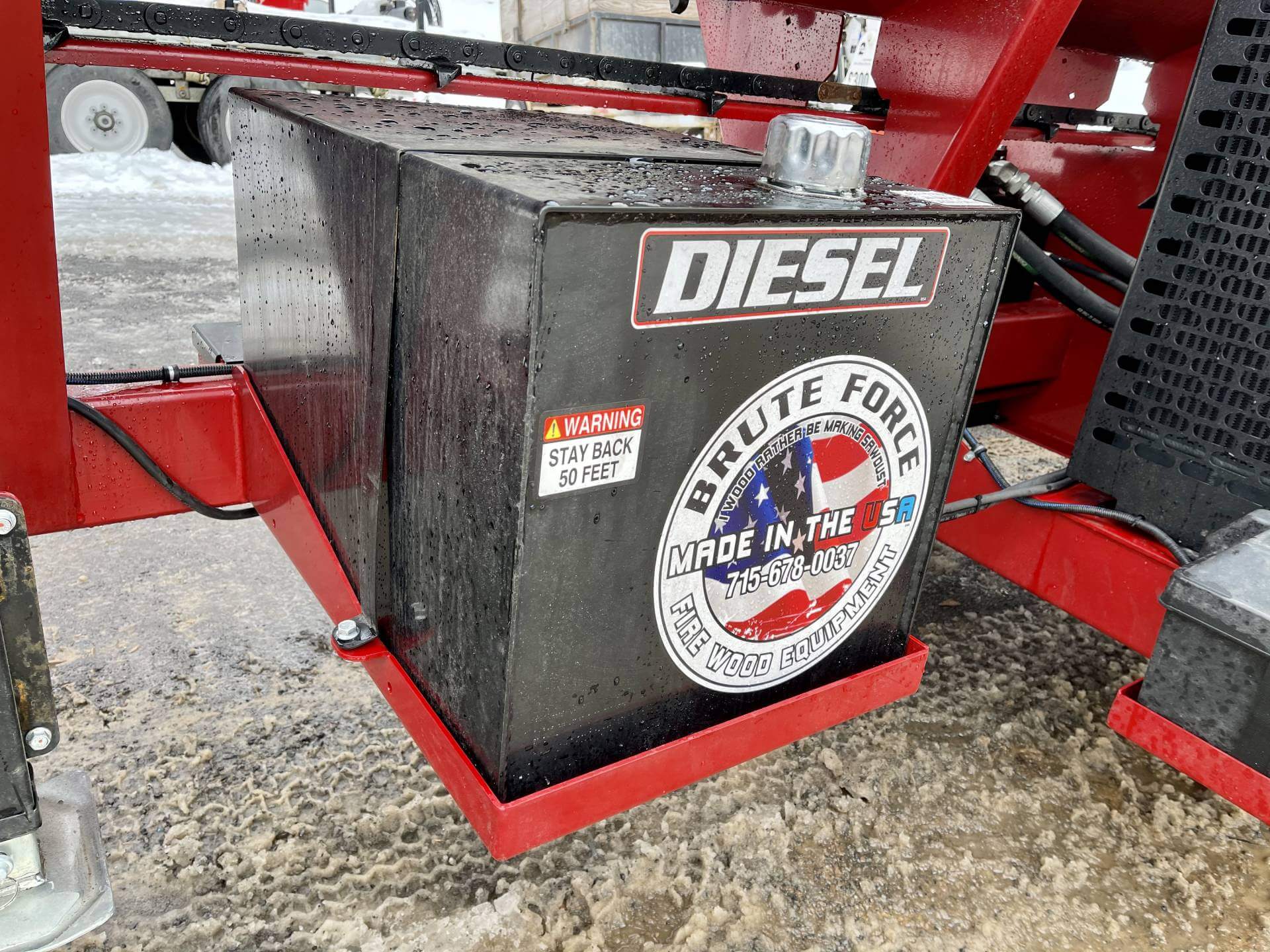

  • Fuel cap: 12 Gal. UISD Sulfur diesel

DIMENSIONS

  • Length: 23’
  • Width: 7’ 6”
  • Height: 11’ 2”
  • Weight: 6800 lbs

STANDARD FEATURES

  • 18″ (21″ Max) Diameter Cut
  • Round Log Trough
  • 3- Strand Deck
  • 4′ Frame Extension
  • 4 -Way Hydraulically Adjustable Splitting Head

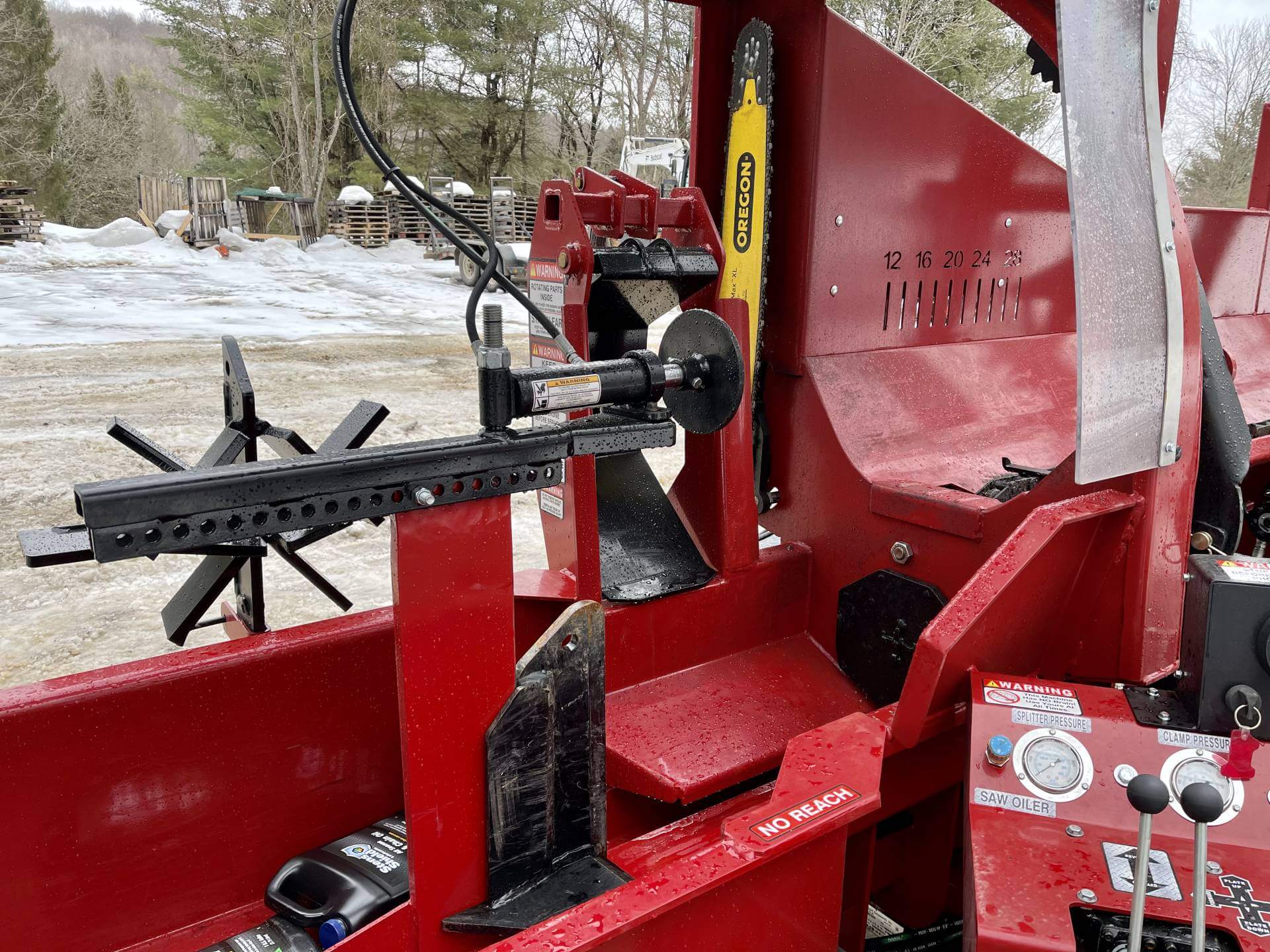

  • Hydraulic log clamp and saw
  • Sawdust Shoot and Wedge Mount
  • Automatic Chain Oiler and Auto Tensioner
  • Fenders and Taillights

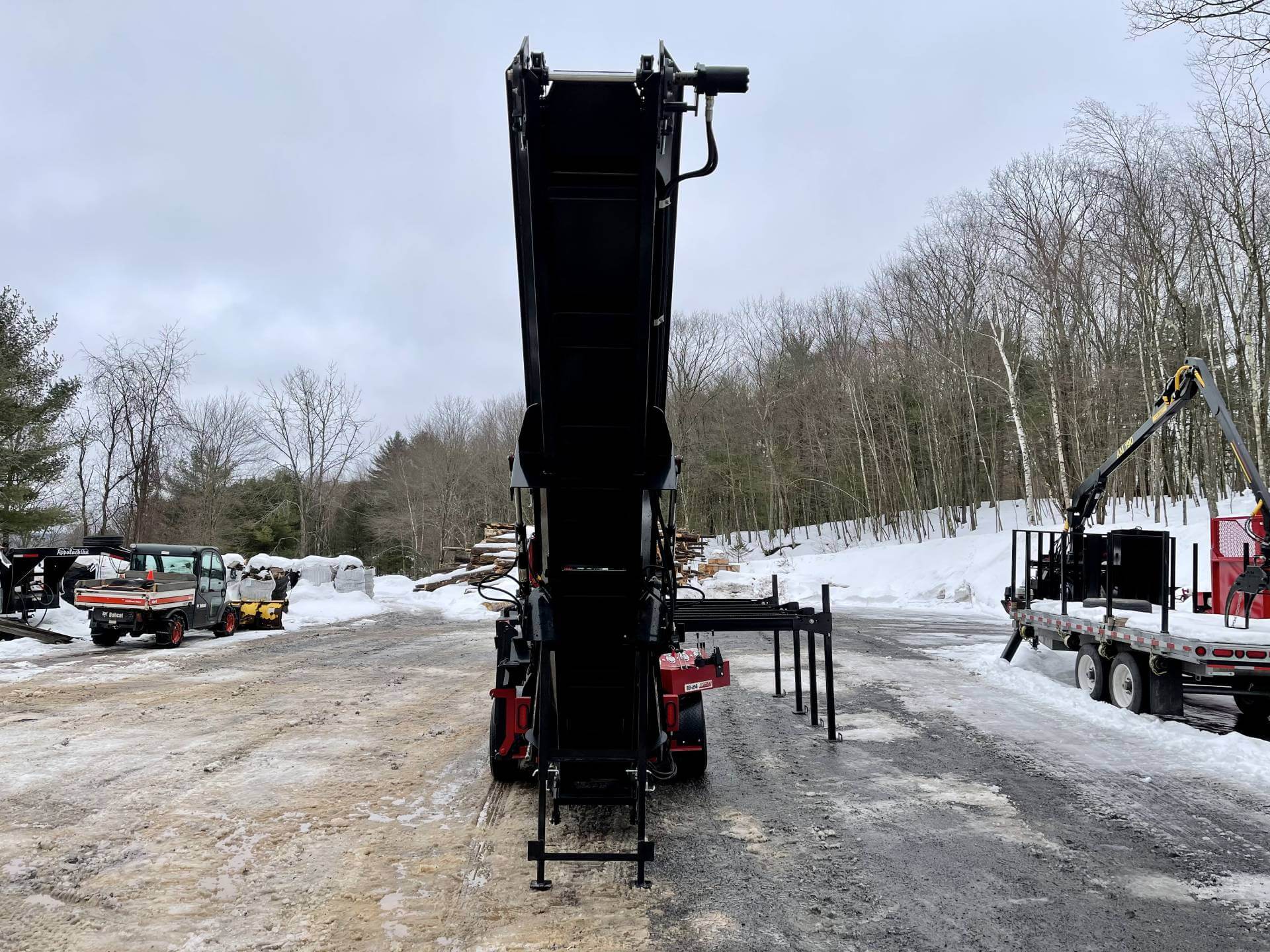

  • 14’ Swiveling Hydraulic Conveyor
  • Saw Chain .404

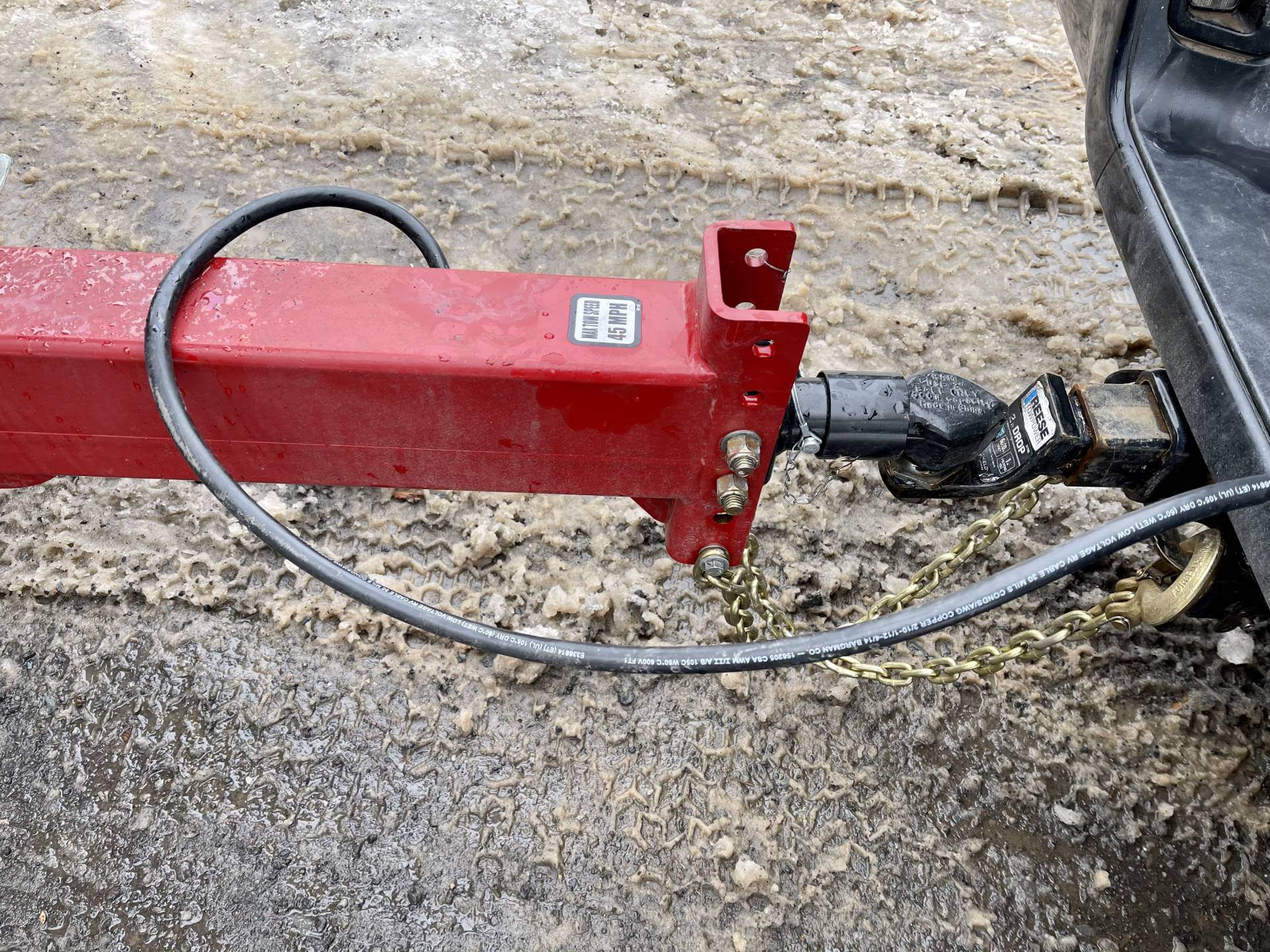

  • 2″ Receiver Hitch
  • Tandem Axles with Brakes
  • Durable Phenolic Wear Slides

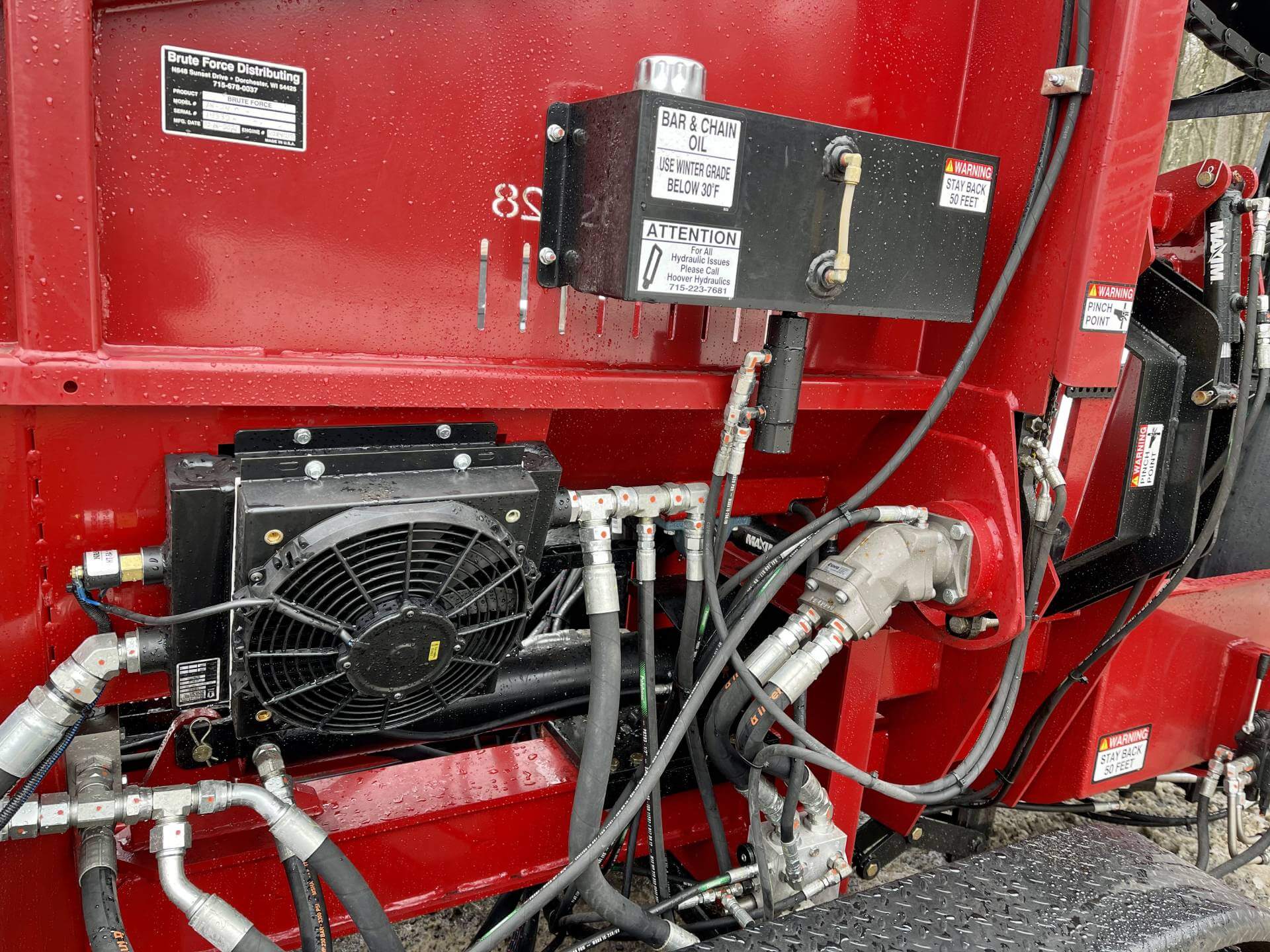

  • Oil Cooler
  • Fast Split
  • Positive Stop
  • Saw Bars 752SMRR149 Auto Tensioner
  • Saw Chains 18hx93 Auto Tensioner
  • 1 year Warranty

OPTIONAL FEATURES

  • 6-Way wedge
  • 8-Way Wedge
  • 12/14- Way Wedge
  • 16′ or 18′ Conveyor
  • 16′ Fold-Over Conveyor
  • 10′ Extended Frame
  • Large Grizzly Wood Cleaner
  • Work Lights
  • Pintle Hitch
  • 2 5/16″ Hitch
  • Operator Seat
  • Auto Cycle
  • 2 Stage Splitter Option
  • Custom Color $2500
